How to setup Mailbox access

Depending on how you deploy the Sendent for Outlook (cross-platform) solution, it requires mailbox access in a specific manner.

The guide distinguishes between Microsoft 365 Exchange and Exchange On-Premise deployments.

By default, Sendent uses the legacy Exchange authentication, however, this may break in the future once Microsoft decides to disable it for Microsoft 365. For Exchange On-Premise configuration, scroll down to the very end or use the menu on the right.

Microsoft 365

In case you're deploying Sendent for Outlook against your Microsoft 365 mailbox, apply the following steps.

Step 1. Create a new app-registration

1. Access your Microsoft entra-environment at https://portal.azure.com.

2. From here navigate to 'App registration'.

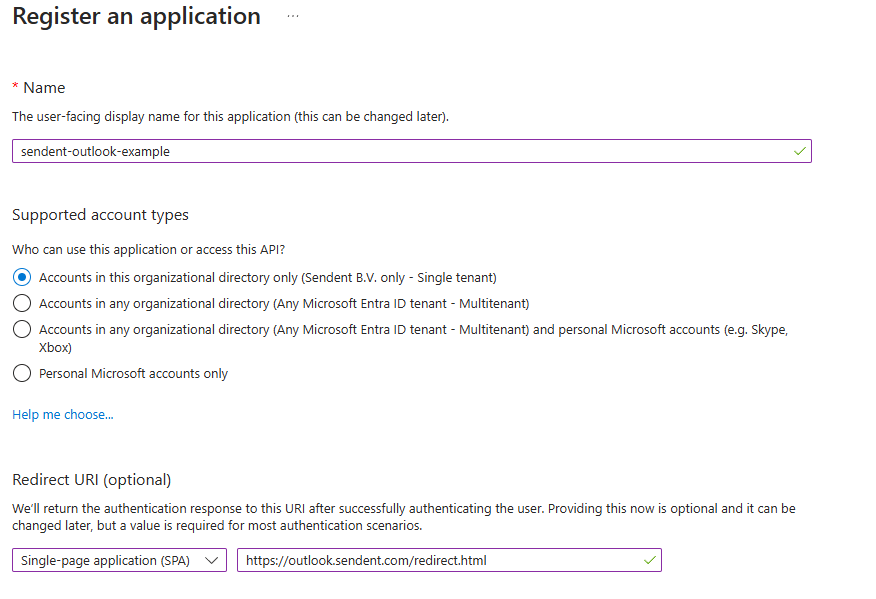

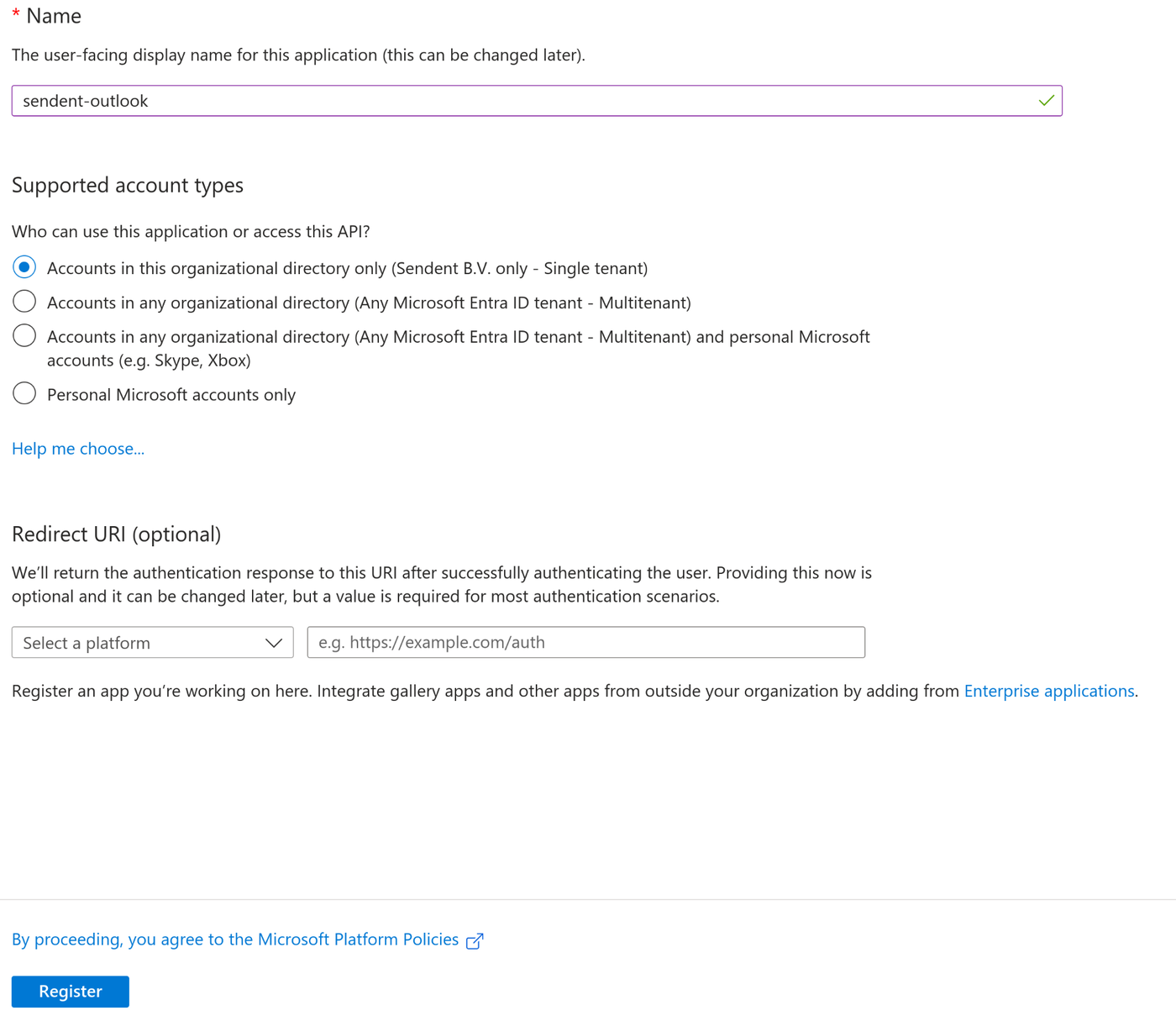

3. Register a new app registration with the following settings.

Overview

Step 2. Configure redirect URI

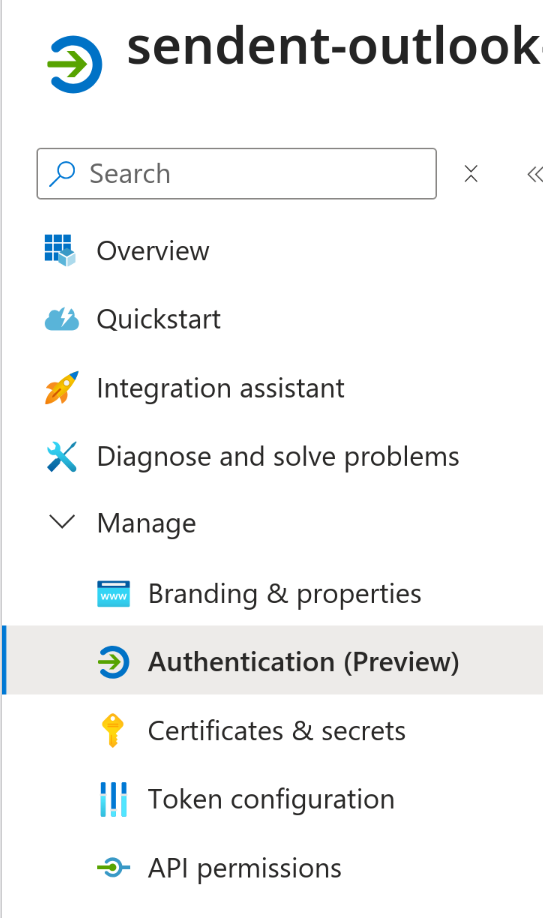

Once the app registrations has been created, you will be automatically redirected to the app registration details. Once there, navigate to the Manage/Authentication tab on the side menu:

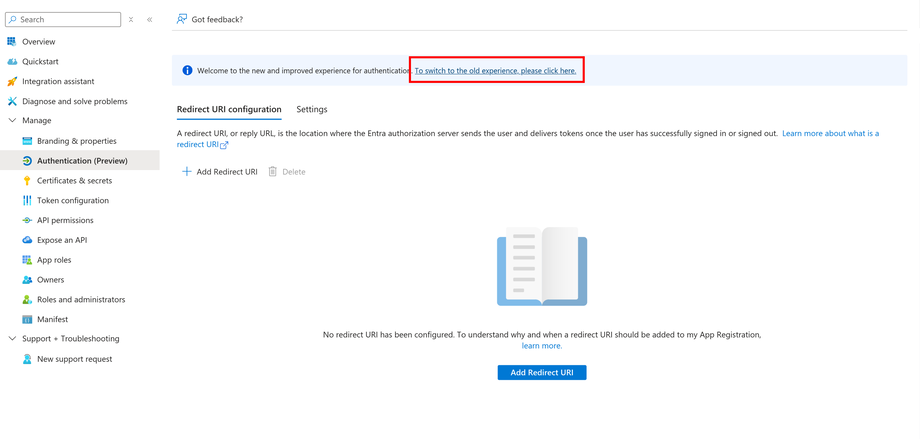

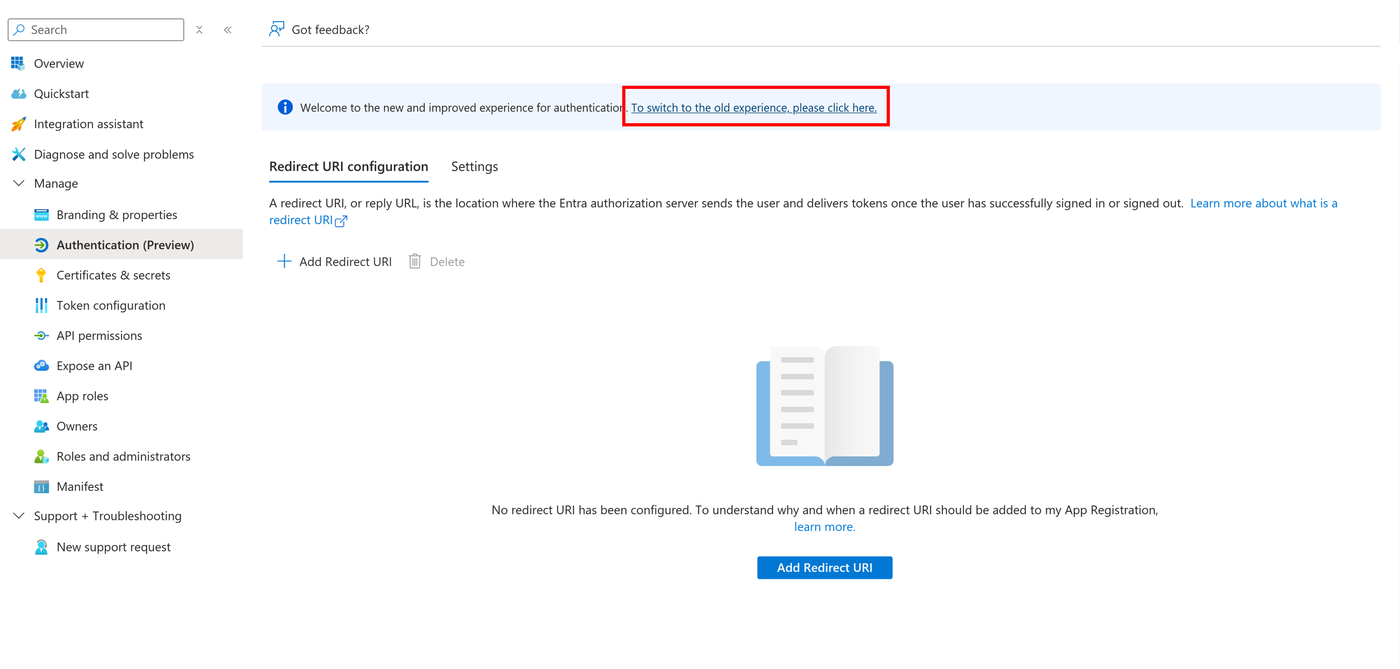

After navigating to the Authentication tab, you might be met with the “New experience” offered by Azure for app registrations. For a consistent set up, you should switch to the old experience (this can be reverted later):

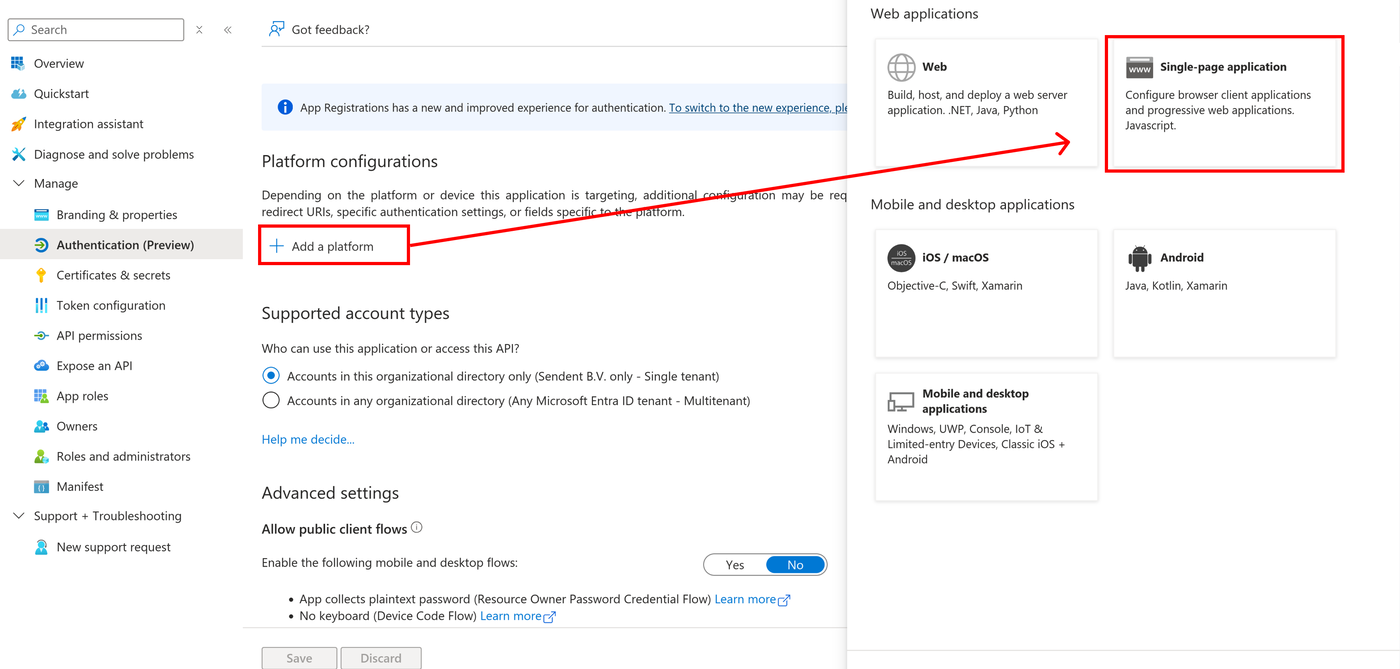

Now, under Platform Configurations, click Add a platform and select Single-page application.

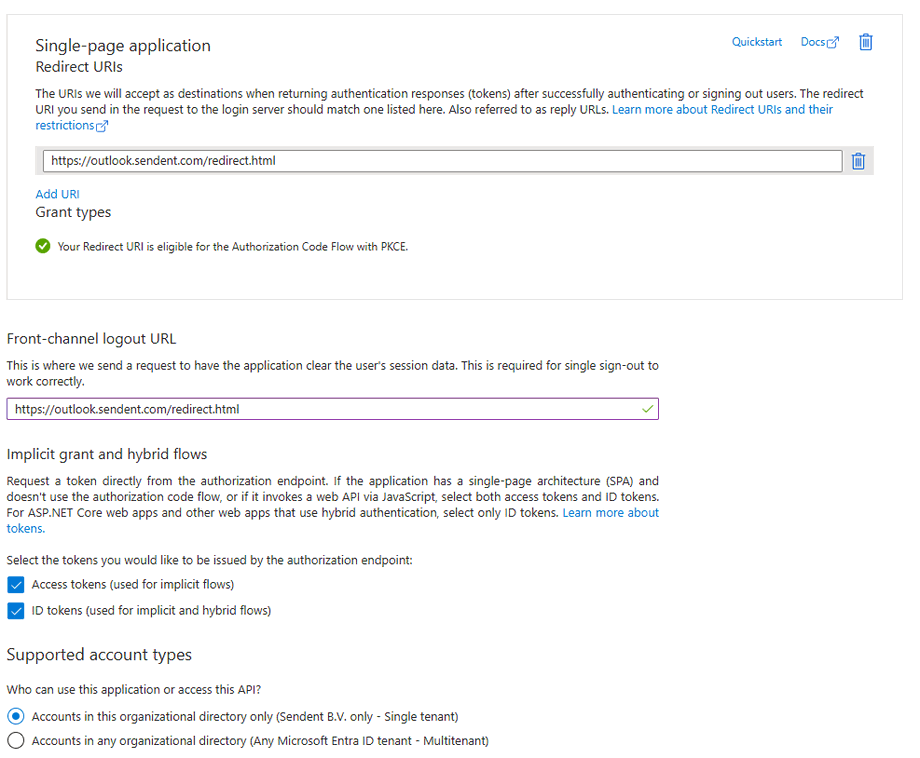

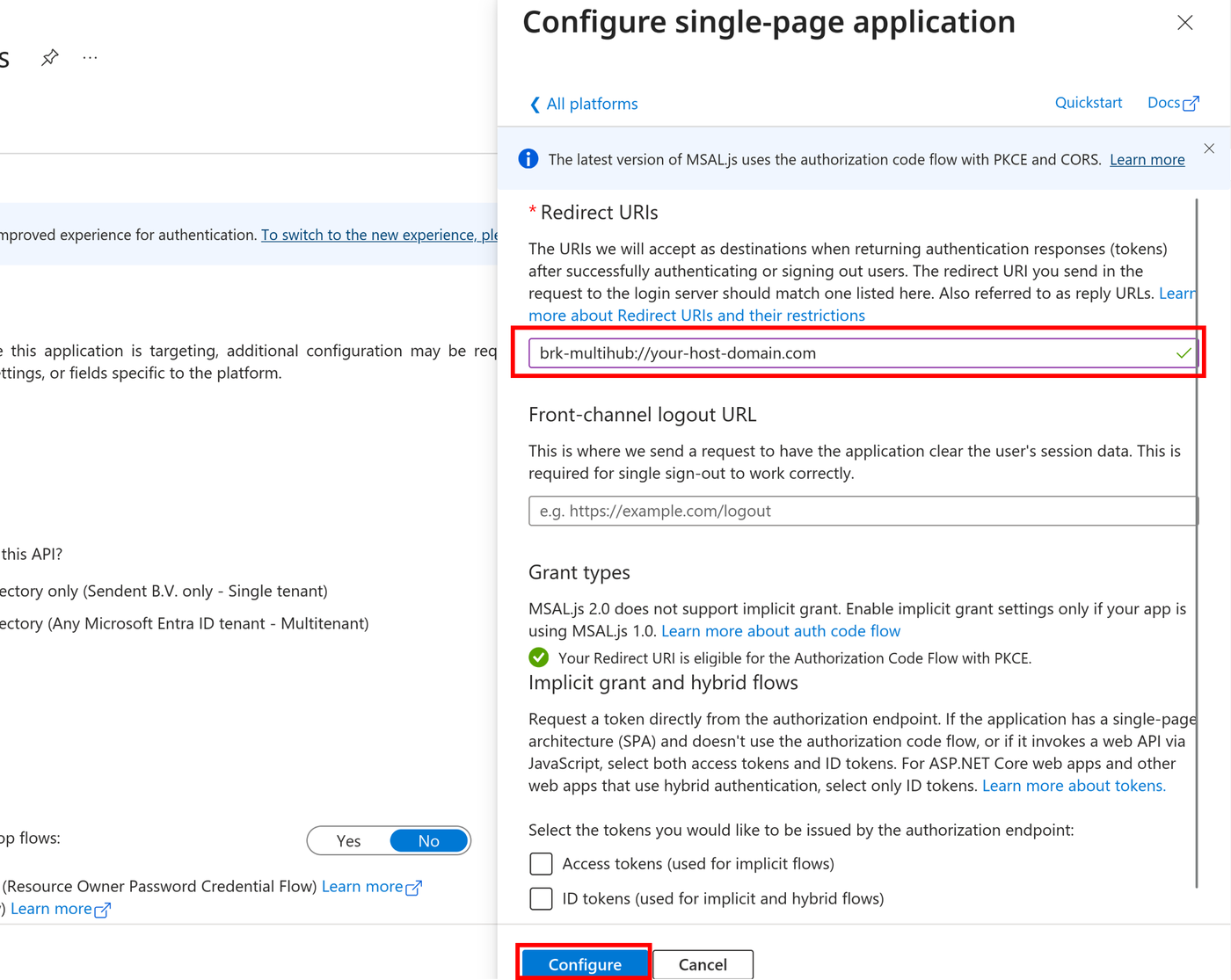

You should be met with the Configure single-page application page. Here, fill in the Redirect URI field with the value brk-multihub://{YOUR_HOST_DOMAIN} and then click configure:

Step 3. Setting up permissions

After setting up the redirect URI for your host, navigate to the API permissions tab. Here, Sendent for Outlook must be given delegated API permissions.

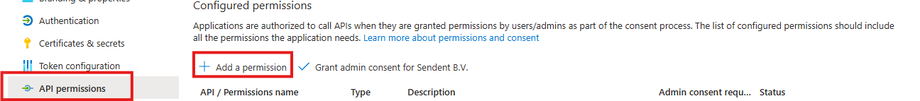

1. Navigate to API permissions in the menu.

2. Click Add a permission.



3. Choose Microsoft Graph on the menu that pops up.

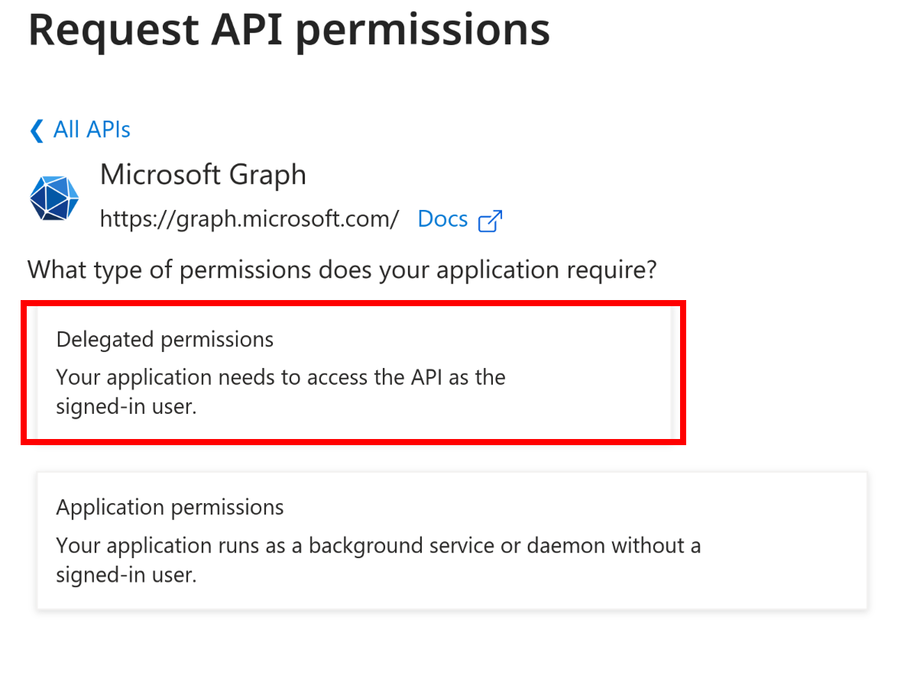

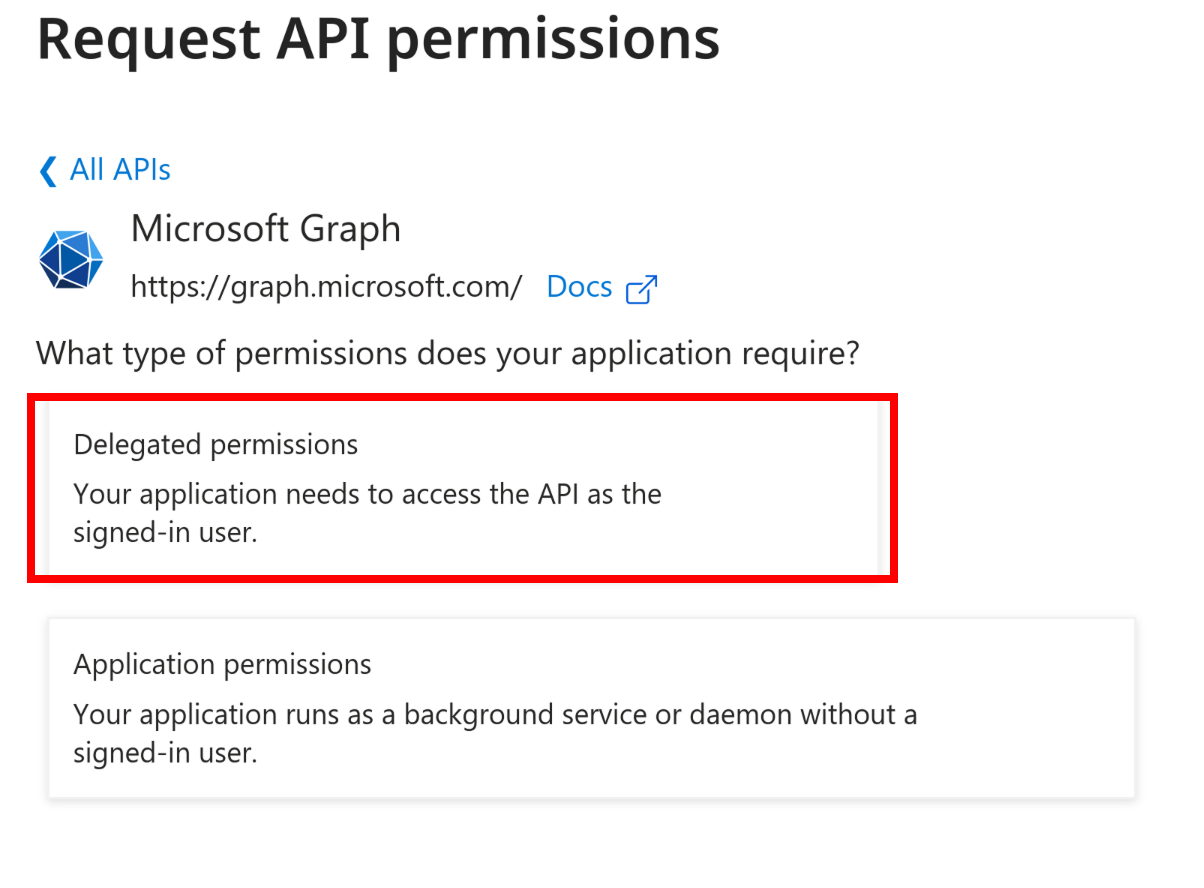

4. You will be presented the option to choose either 'Delegated permissions' or 'Application permissions'. Here we choose for Delegated permissions.




5. Now you can search for delegated permissions. You should add the following permissions and then click Add permissions:


   Permission
   Mail.ReadWrite
   Mail.Send
   User.Read
   profile
   openid
   email
   offline_access

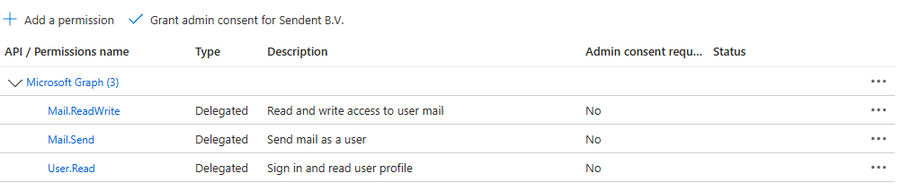

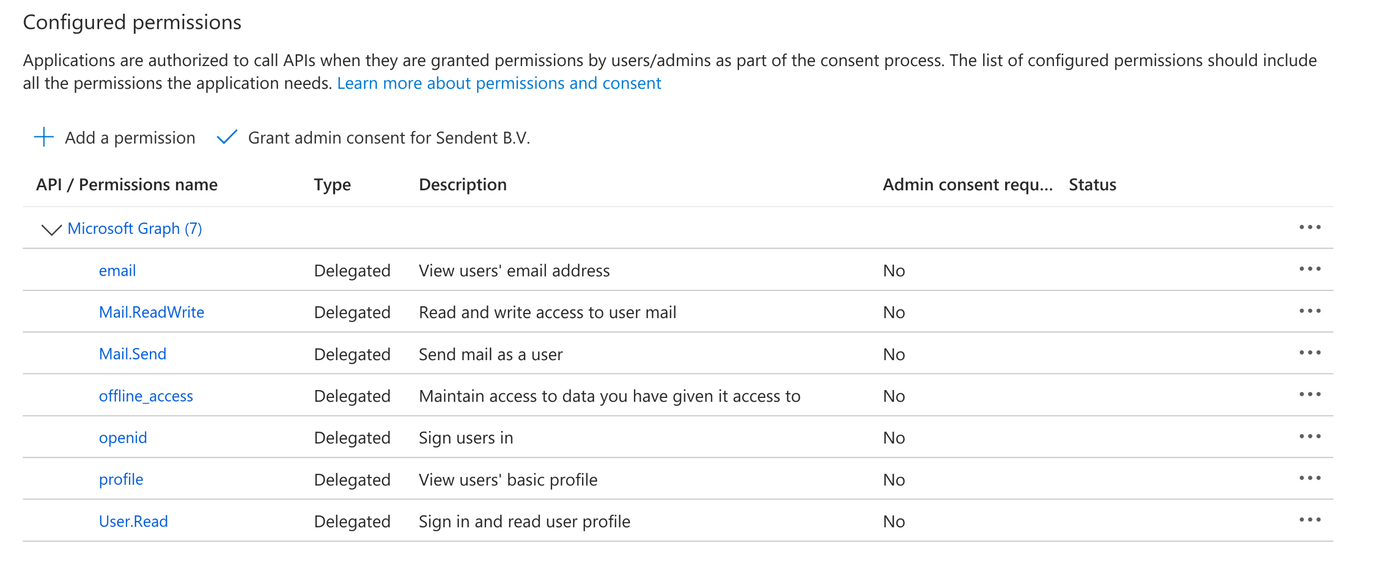

The overview should now look as follows:

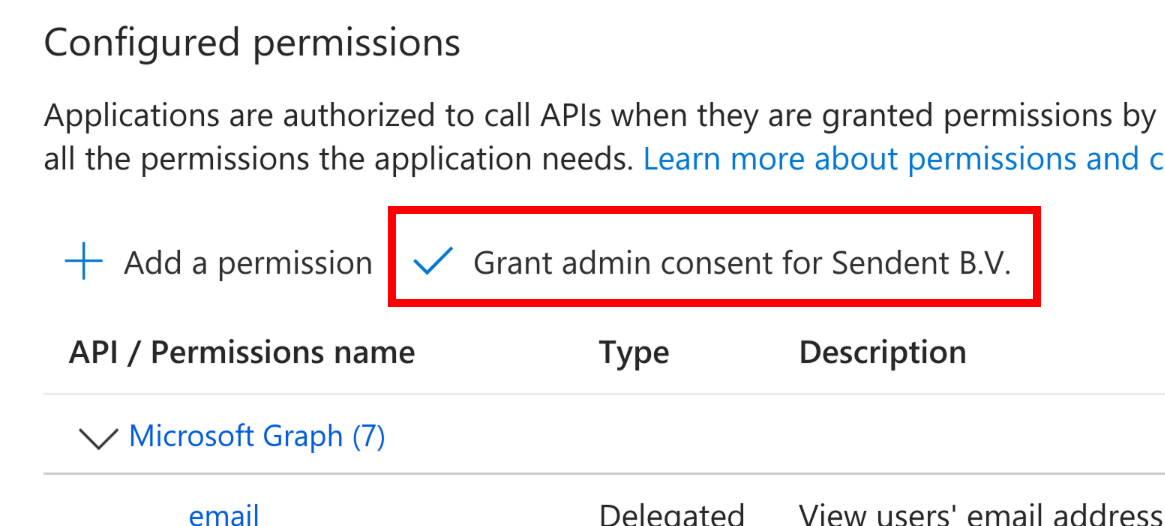

The last step is to Grant admin consent for your organization by clicking the respective button.

Step 4. Copying information

Within the app-registration, access the overview menu.

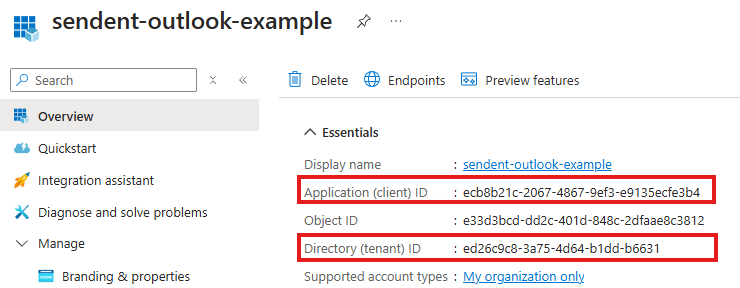

Once there, copy the Application (client) ID and Directory (tenant) ID values to some notepad. You will need these values to set up mailbox authentication.

Step 5. Modifying docker compose

Set the following environment variables within your docker compose file.

Example

version: '3.9'

services:
  sendent.outlook:
    image: rg.nl-ams.scw.cloud/sendent-public/sendent-outlook:latest
    build:
      context: .
      dockerfile: Dockerfile
    restart: on-failure
    environment:
     - MS_AUTH_TYPE=naa_silent
     - MS_APP_ID=<app_registration_id>
     - MS_TENANT_ID=<tenant_id>
     - BASE_URL=<your_base_url>   # e.g., outlook.sendent.com
    ports:
      - 4300:4300
    volumes:
      - ./docker-config:/usr/src/app/outlook-addin/docker-config
    networks:
      - node_network

networks:
  node_network:

Exchange On-Premise

In case you're deploying Sendent for Outlook against Exchange On-Premise, apply this step.

Ensure to add the following environment variable is set in your docker compose file:

MS_AUTH_TYPE=legacy_exchange

Example:

version: '3.9'

services:
  sendent.outlook:
    image: rg.nl-ams.scw.cloud/sendent-public/sendent-outlook:latest
    build:
      context: .
      dockerfile: Dockerfile
    restart: on-failure
    environment:
     - MS_AUTH_TYPE=legacy_exchange
     - BASE_URL=https://outlook.sendent.com
    ports:
      - 4300:4300
    volumes:
      - ./docker-config:/usr/src/app/outlook-addin/docker-config
    networks:
      - node_network

networks:
  node_network:
